135i 7" Intercooler FMIC

HIGHLIGHTS

• Gain up to 35whp/38wtq
• 89% Larger Than OEM
• 1hr Installation
• Ultra-Dense Fin Packs

PROFILE

At 805 cubic inches the ARM Motorsports 7” FMIC provides a significant increase in cooling efficiency over the 5" FMIC and the perfect intercooler upgrade for the N54 and N55 powered E82 135i maxing out the stock turbos or running a turbo upgrade. With almost a 30% increase in size over our 5" intercooler upgrade, our 7" FMIC a respectable step up in overall volume for handling higher boost applications where the IAT's can rise quickly.

CONSTRUCTION



The ARM 7” FMIC measures 20 x 7 x 5.75 inches for a total of 805 cubic inches, almost DOUBLE the size of the OEM 135i intercooler and 180 cu in larger than our 5” FMIC. Combined with our Ultra-Dense fin packs, not only are you getting a substantially larger intercooler, but also one that utilizes its size efficiently for maximum cooling performance.

COOLING INTAKE AIR TEMPERATURES

While testing the 7" FMIC for it's ability to cool the charged air, we found that IAT's increased only three degrees during a 3rd gear datalog. Considering our baseline test with the OEM intercooler resulted in a performance-robbing IAT increase of sixty degrees, the ARM 7" FMIC has 95% better cooling performance than the OEM 135i intercooler.

FIRST OF ITS KIND

The ARM 7” FMIC is the first ever intercooler upgrade for the E82 135i that has been engineered with CAD designed CNC aluminum connectors for you to utilize either the OEM intercooler hoses or the ARM FMIC Hose Upgrade. Opting to utilize the OEM connectors will make for a faster and fully reversible install. While upgrading your 135i to the massive ARM 3 in. intercooler hoses, you will be giving your 135i maximum airflow by removing any restriction the OEM connections may have on the charged air.



DYNO PROVEN

When testing the 7" FMIC on a Stage 2+ N54 335i we found it made an average of 10whp/10wtq over our 5" FMIC upgrade and 35whp/38wtq over the OEM intercooler!

FITMENT: The OEM 7” FMIC does NOT require removal of the front bumper, but will require some trimming of the plastic behind the bumper.

CUSTOMER CARS

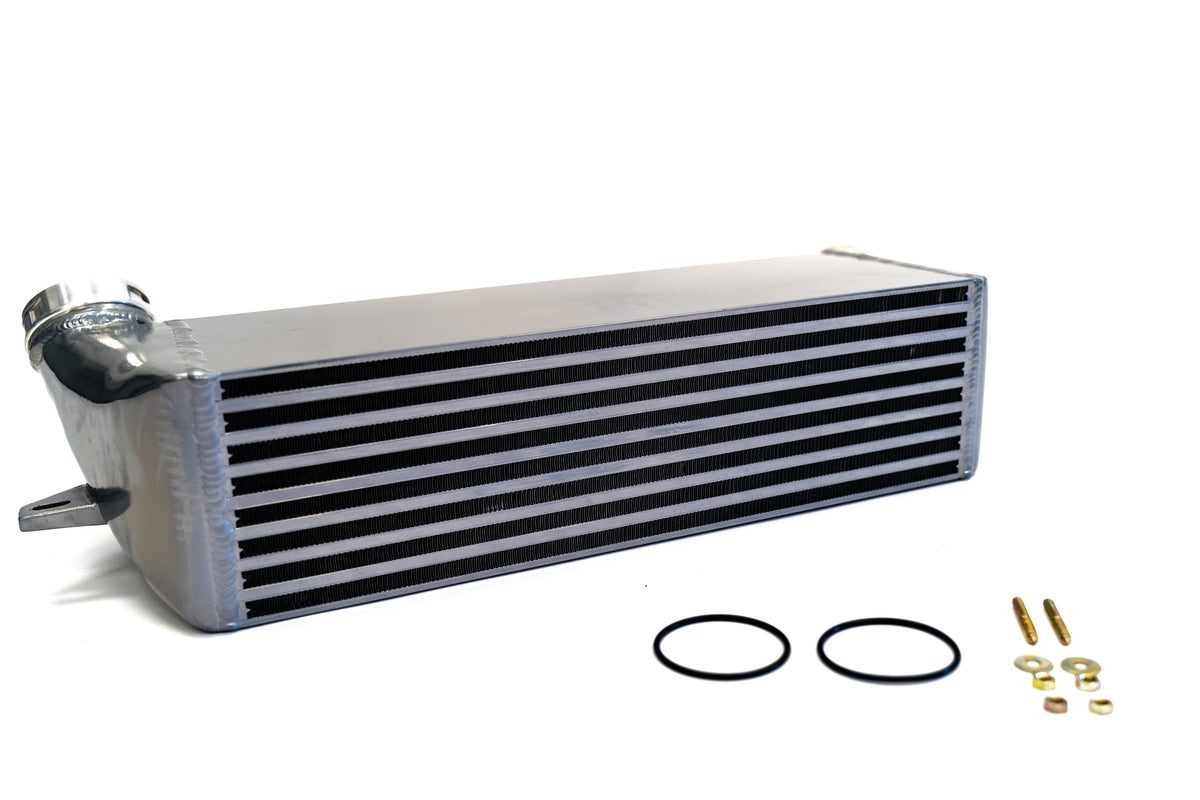

IN THE BOX

• ARM 7" FMIC
• Mounting Hardware

FITMENT GUIDE

Make	Chassis	Model	Engine
BMW	E82	135i	N54 3.0L
BMW	E82	135i	N55 3.0L
BMW	E90	335i	N54 3.0L
BMW	E90	335i	N55 3.0L
BMW	E90	335xi	N54 3.0L
BMW	E90	335xi	N55 3.0L
BMW	E92	335i	N54 3.0L
BMW	E92	335i	N55 3.0L
BMW	E92	335is	N54 3.0L
BMW	E92	335xi	N54 3.0L
BMW	E92	335xi	N55 3.0L
BMW	E93	335i	N54 3.0L
BMW	E93	335i	N55 3.0L
BMW	E93	335is	N54 3.0L
