E90 330i Time Attack Build

Full video on build- https://youtu.be/BONgNWzdR6Q?si=Ab8WtGnaelz9HtkT

2006 BMW 330 with 150k miles purchased with a bad engine, used N52k with 70k installed.

How the car looked when it was purchased-

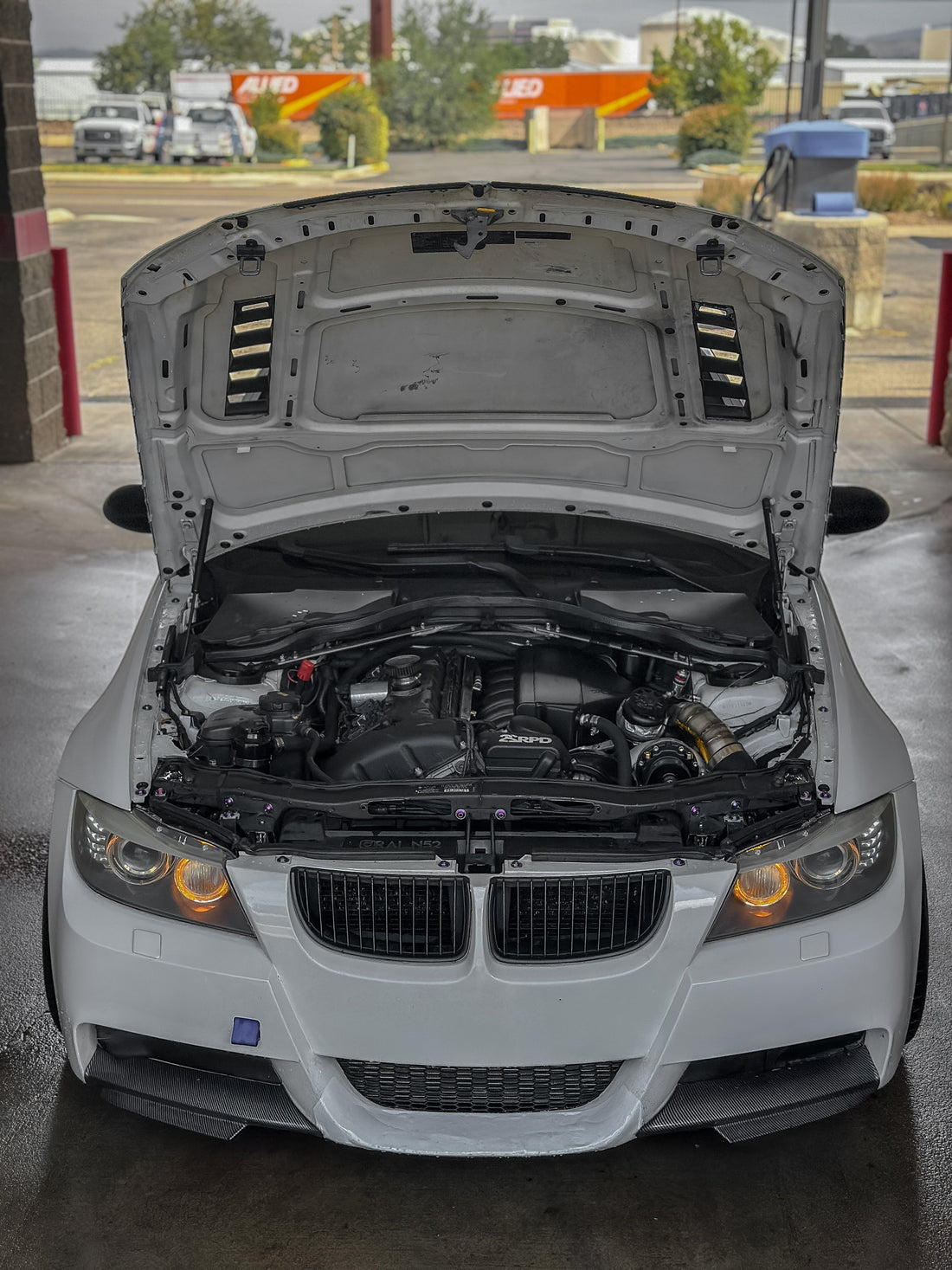

How it looks now





Tuning
22RPD Stage 2 Tune
XHP Stage 3 transmission flash
N2mb Wotbox

Dyno tested at 261whp, video linked below

https://youtu.be/75qMZn6SRmw

1/4 mile at 13.7 sec, video linked below

https://youtu.be/4xhl7mi6eLs

Engine
MILVS
Malo Industries Crank seal guard

E46 M3 transmission mounts

Porsche GT4 Injectors

Supercharger Setup

22RPD Upgraded ESS G1 Supercharger kit (385WHP)



Old NA Intake setups-

22RPD Velocity Stack prototype (269WHP)

Velocity Stack Demo Video

Velocity Stack Sound clip

Old Intake setup #2 (261WHP)

N54 intake manifold
N54 throttle body
Gruppe M airbox with fog light duct (Sound clip- https://youtu.be/hn4o2qv5OvY )

Fog light velocity stack
Ebay intake scoops

Exhaust
AA Replica HZ Racing Headers

3" custom exhaust

Vibrant Resonator #2

Vibrant Muffler

Mandrel 3” Stainless Steel Pipe

Ignition
Eldor Ignition Coils
NGK laser iridium spark plugs

Cooling/Misc
90/10 Water/Antifreeze +1 bottle Water Wetter
N54 oil cooler retrofit (How to video- https://youtu.be/Zg61mUIfRzY )
FTP Oil Thermostat Bypass
Ebay N54 catch can (How to video- https://youtu.be/lod-ZpPX6iU )
CCV + CCV heater delete

Front Suspension

E90 M3 front strut brace
Ground Control Race camber plates
M3 upper/lower control arms
Megan front strut brace
Koni Yellow Shocks
Tckline coilover conversion kit
Swift 336lb 7" 65mm Springs
E90 M3 front sway bar
Whiteline adjustable end links

CMP Bump Steer Correction Kit



Rear Suspension
Swift 672lb springs
Rear Z4M Bump Stops
Dinan Rear Upper Shock Mounts
Godspeed Rear Camber Arms

Manzo rear toe arms

SPL Toe Lockout Kit
Vwetish diff brace (Bought from VWETISH on www.jb4tech.com)
Revshift Solid Subframe Bushings
3,91 differential (From auto 328xi, I used 328xi rear driveshaft, 330i front)

Whiteline Differential Bushings
335 Axles
335 Rear Knuckles

Braking
335i brake calipers

ECS Two piece Front Rotors
R1Concepts Slotted Rear Rotors

Bimmerworld Front Brass Caliper Bushings
Bimmerworld Rear Brass Caliper Bushings

Stoptech Front Sport Brake Pads

Stoptech Rear Sport Brake Pads
Stoptech Front SS Brake Lines

Stoptech Rear SS Brake Lines

Motorsports Hardware Stud Conversion

Wheels

Apex Arc-8 17x9 ET30

Continental ExtremeContact DWS06 Plus 255/40





Weigh Reduction

S2R Carbon Fiber Sunroof Delete (Discontinued)

DIY Rear Seat Delete

Hard Motorsports Rear Door Cards
